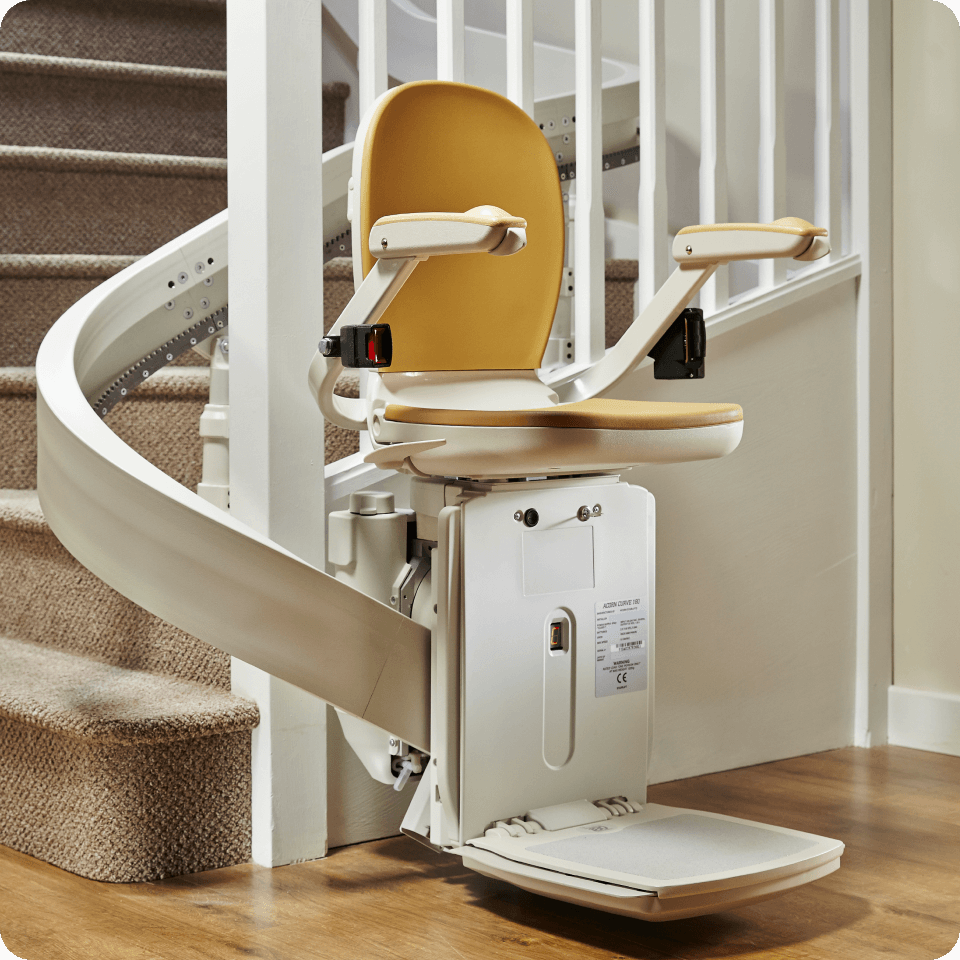

Acorn Curved Stairlift
The Acorn 180 Curved Stairlift provides a tailored solution for staircases which have curves, angles or returns.
*Why do I need to fill out a form for a price?- DISCREET SINGLE RAIL
- MODULAR RAIL SYSTEM
- SMOOTH RIDE
STAIRLIFTS FOR CURVED STAIRS
The 180 Curved Stairlift is Acorn’s highly versatile solution for more complex staircases with curves, bends or returns. These stairlifts require a unique rail which will precisely follow the contours of the stairs. Acorn’s single blank-faced stairlift rail is designed to blend well with a domestic setting, as well as being extremely strong. You’ll hardly notice it’s there.
ACORN’S FASTTRACK® SYSTEM
Acorn’s patented FastTrack® modular rail system has revolutionised this process of building a one-off curved rail and thereby slashed customer waiting times. It uses an extensive parts library of ready-made rail sections, each with a slightly different degree of bend or incline. Your home survey determines which sections are needed in which order. A skilled Acorn engineer then assembles the interlocking rail sections on site in just a few hours, creating your bespoke curved stairlift rail. An Acorn 180 Curved Stairlift can be installed within days of your order, even next day if urgency is essential.
VERSATILE AND ADAPTABLE
Acorn’s FastTrack® modular rail system makes its 180 Curved Stairlift extremely versatile and adaptable. If another provider has told you that your stairs are too unusual or ‘non-standard’ for a stairlift, you should try Acorn for a second opinion. The single blank-faced rail is secured to the stairs, not the wall, with no need for messy and disruptive structural work or redecorating after installation. The maximum capacity of the Acorn 180 Curved Stairlift is 264lbs.
- TWIN REMOTE CONTROLS
- PATENTED FASTTRACK® SYSTEM
- COMFORTABLE SEAT AND BACKREST
| Dimensions | inch |
|---|---|
| Overall height | 38.25 |
| Height of Seat | 17.25 |
| Overall depth (from wall) | 22.25 |
| Overall depth (when folded) | 13.25 |
| Width of footrest | 14.75 |
| Overall width | 24.5 |
| Depth of seat | 16 |
| Specifications | |
|---|---|
| Motor output speed | 120mm/s | 4.8inches per second - No greater than 0.15 meters per second |
| Method of drive | Rack and pinion |
| Power supply | 24V DC (battery) |
| Maximum capacity | 265lbs/120kg |
| Track | Modular rail, Extruded aluminium |
| Mains supply | 50-60Hz, 100-240V AC |
Price your stairlift
DISCOVER HOW LITTLE YOUR STAIRLIFT COULD COST
The only way to get a true, clear and all-inclusive price for a stairlift built to fit your stairs and meet your individual needs is to schedule a free home survey and quote. Use the buttons on the right to take the first steps towards defeating the stairs in your home and living life to the full once more.
